The Main Types of Welding Fixtures and Their Uses in Fabrication

Every fabricator knows that precision and consistency make or break a weld. Yet achieving both consistently—especially across high-volume production—isn’t just about skill or technology; it’s about the tools that hold everything together.

That’s where welding fixtures come in. These essential devices secure, align, and position components during welding, ensuring accuracy, safety, and repeatability. The right fixture doesn’t just improve weld quality—it can transform production efficiency and reduce costs dramatically.

In this article, we’ll break down the most common types of welding fixtures used in fabrication today, explaining their unique advantages, limitations, and where each type fits best.

Manual Fixtures

The most fundamental type of welding fixture, manual fixtures rely entirely on operator control. They use mechanical clamps, toggle mechanisms, and simple locators to position workpieces.

Where They Excel:

• Perfect for low-volume, custom, or prototype fabrication.
• Offer unmatched flexibility and ease of adjustment for different parts.
• Ideal for smaller workshops or jobs that frequently change design.

Advantages:

• Low cost and minimal setup requirements.
• Easy to adjust or modify without specialized tools.
• Simple to maintain and operate.

Limitations:

• Highly dependent on operator precision.
• Slower setup and cycle times compared to automated systems.

If your operation focuses on craftsmanship, short runs, or repair work, manual fixtures remain a practical and affordable choice. They align well with current construction industry trends that value customization, hands-on precision, and flexible project execution. As technology and materials evolve, these fixtures continue to offer a reliable foundation for adapting to new building techniques.

Semi-Automatic Fixtures

Semi-automatic fixtures bridge the gap between manual operation and full automation. They incorporate powered mechanisms—typically pneumatic or hydraulic clamps—to automate certain steps of the process while leaving part loading and unloading to the operator.

Ideal Applications:

• Mid-volume production environments.
• Repetitive parts that need quick clamping and consistent alignment.

Benefits:

• Faster operation and reduced fatigue for operators.
• Improved consistency compared to fully manual setups.
• Lower initial investment than robotic fixtures.

Drawbacks:

• Still requires human supervision.
• Maintenance of pneumatic or hydraulic systems adds complexity.

Semi-automatic fixtures deliver the best of both worlds—automation for efficiency, human oversight for flexibility.

Fully Automated or Robotic Fixtures

In advanced manufacturing environments, fully automated welding fixtures are integrated directly with robotic or CNC welding systems. These fixtures handle clamping, positioning, and even verification automatically, making them indispensable for high-volume, high-precision production.

Key Features:

• Servo-controlled or motorized movements.
• Integrated sensors for position and force monitoring.
• Seamless coordination with robotic weld paths.

Advantages:

• Exceptional repeatability and throughput.
• Enables 24/7 operation with minimal downtime.
• Reduces labor costs and operator variability.

Challenges:

• High initial cost and programming complexity.
• Requires expert maintenance and calibration.

For large-scale production—such as in automotive, aerospace, or appliance manufacturing—robotic fixtures ensure quality and speed that manual systems simply can’t match.

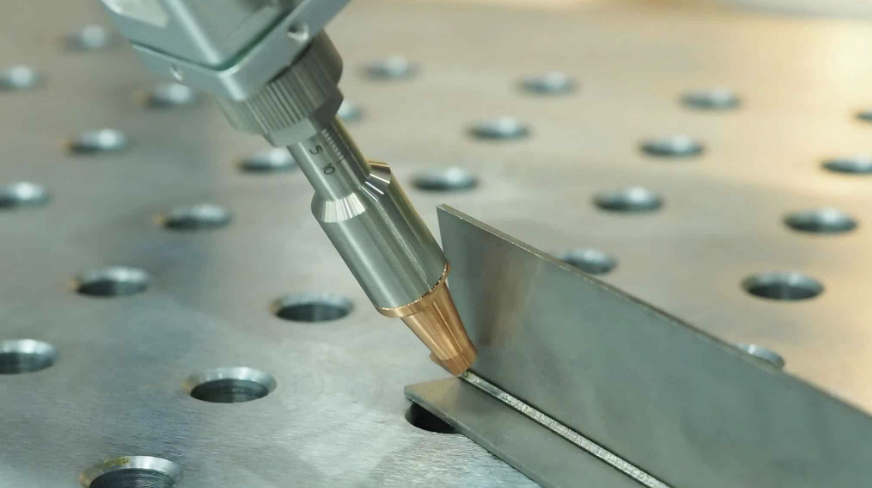

Modular Fixtures

Modular fixtures are built from standardized plates, clamps, and locating blocks that can be rearranged or expanded for different projects.

Why They’re Popular:

• Offer unmatched versatility for fabricators handling a wide variety of part geometries.
• Cost-effective in environments with frequent design changes or prototypes.

Advantages:

• Quick reconfiguration between jobs.
• Reduced lead times—no need for custom fixture fabrication each time.
• Scalability for small to large parts.

Drawbacks:

• Slightly less precise than dedicated fixtures.
• May require manual calibration for each setup.

These fixtures are ideal for job shops that prioritize flexibility and fast turnaround times without sacrificing quality.

Dedicated (Fixed) Fixtures

At the other end of the spectrum, dedicated fixtures are purpose-built for a specific part or assembly. Once designed, they guarantee high precision and repeatability for that one product.

Best Used For:

• Long production runs with consistent part geometry.

• High-volume operations where setup speed is critical.

Advantages:

• Maximum accuracy and speed.
• Shorter cycle times and reduced operator intervention.

Limitations:

• Expensive to design and build.
• Not adaptable—any design change requires retooling.

Dedicated fixtures are a long-term investment for stable, large-scale production where consistency is the top priority.

Adjustable / Universal Fixtures

Adjustable fixtures, sometimes called universal fixtures, offer a middle ground between modular and dedicated systems. They feature sliding, rotating, or pivoting elements that can be repositioned for various part shapes and sizes.

Ideal For:

• Job shops or maintenance teams.
• Applications requiring frequent part swaps.

Advantages:

• Great flexibility across multiple product lines.
• Reduces the need for multiple fixtures.
• Cost-effective for low-to-mid volume work.

Limitations:

• Setup can take longer than dedicated systems.
• Precision may vary with complex adjustments.

When versatility is more important than speed, adjustable fixtures provide a practical solution that saves both floor space and budget.

Specialized Fixtures

Specialized welding fixtures are engineered for specific functions or processes. Some common types include:

• Tack Welding Fixtures: Secure components for initial tack welds before final joining.
• Rotary or Indexing Fixtures: Rotate the part during welding for seamless, continuous welds.
• Positioner-Based Fixtures: Combine motion axes (tilt, rotation, lift) for multi-angle access.
• Magnetic Fixtures: Ideal for ferrous parts where mechanical clamps are impractical.

Each specialized fixture enhances precision and efficiency for unique applications, from cylindrical welds to complex assemblies.

Hybrid Fixtures

A hybrid fixture merges characteristics from multiple fixture types—like a modular base with powered clamps or semi-automated actuation.

Why It Works:

• Provides the precision of dedicated systems with the flexibility of modular ones.
• Ideal for shops handling mixed production volumes.

Advantages:

• Adaptable to part changes without complete redesign.
• Balanced cost-to-performance ratio.
• Can integrate automation selectively for critical steps.

Hybrid fixtures are becoming increasingly common in smart manufacturing, offering the agility to shift between product lines without significant downtime.

Fixture + Positioner / Manipulator Systems

When welding complex or heavy parts, combining fixtures with positioners or manipulators offers complete spatial control.

Functionality:

• The fixture secures the part, while the positioner tilts, rotates, or elevates it.
• Allows the welder—or robot—to maintain optimal torch angles.

Advantages:

• Improves weld accessibility and ergonomics.
• Reduces repositioning errors.
• Enhances weld quality by keeping consistent travel speed and angle.

These systems are essential in industries where multi-axis welding or large assemblies are common, such as shipbuilding, railcar manufacturing, and heavy machinery.

Considerations for Choosing the Right Fixture Type

Selecting the right type of welding fixture depends on several practical factors:

• Production Volume: High-volume operations benefit from automated or dedicated fixtures; low-volume shops may prefer modular or adjustable systems.
• Part Variety: Frequent part changes require flexible or modular designs.
• Precision Requirements: Tight tolerances demand rigid, dedicated setups.
• Automation Level: Evaluate whether manual, semi-automatic, or robotic integration suits your workflow.
• Budget and Lead Time: Balance the upfront investment against long-term productivity gains.

Understanding these considerations ensures that your fixture strategy aligns with both your operational goals and financial constraints.

Innovating Fixture Design for the Future of Welding

As fabrication evolves toward automation and precision, they continue to lead with innovative fixture solutions tailored to modern production demands.

Whether you need modular flexibility, robotic integration, or hybrid designs, their advanced types of welding fixtures help fabricators achieve superior alignment, faster setup times, and consistent weld quality. Each solution combines engineering precision with ergonomic design—so you can optimize throughput without compromising safety or performance.

With Denaliweld, you’re not just investing in equipment—you’re building the foundation for smarter, more efficient welding operations.

Conclusion

There’s no single fixture that fits every welding scenario. From manual clamps to fully automated systems, each type of welding fixture serves a distinct purpose—balancing cost, flexibility, and precision.

Fabricators who understand these fixture categories can make informed choices that reduce waste, improve quality, and streamline operations. And with innovative partners like Denaliweld, the next generation of welding fixtures will continue to push boundaries, making precision and productivity accessible to every fabricator.
