Color Coating Line vs Galvanizing Line: Key Differences in Metal Treatment
In modern metal processing industries, surface treatment plays a vital role in determining product durability, appearance, and resistance to corrosion. Two of the most widely used technologies are color coating systems and galvanizing systems. While both are designed to enhance metal performance, they differ significantly in process, purpose, and final output.
A key technology in decorative and protective finishing is the color coating line, which focuses on applying pre-painted layers to metal coils for improved aesthetics and surface protection. In contrast, galvanizing lines are primarily designed to apply a zinc coating that protects steel from rust and corrosion. Understanding their differences helps manufacturers choose the right solution based on application needs.
Overview of Color Coating Line

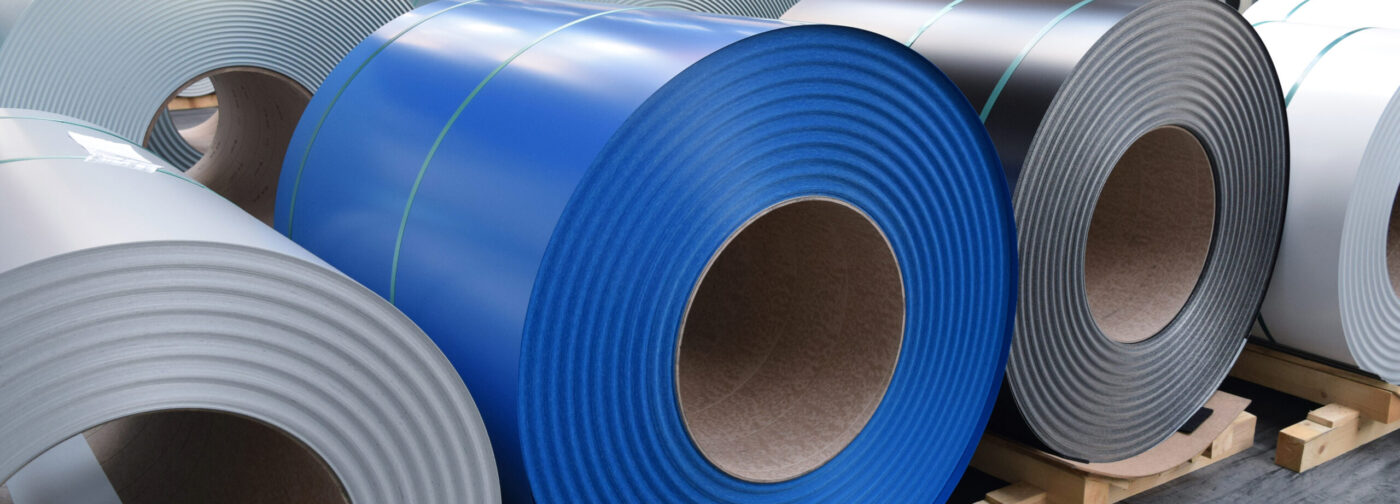

A color coating line is an automated system used to apply organic paint coatings on metal coils such as steel or aluminum. The process includes surface cleaning, chemical treatment, primer coating, top coating, and curing.
The primary goal is to produce visually appealing and corrosion-resistant pre-painted metal products used in construction, appliances, and decorative applications. The system allows precise control over color, gloss, and texture, making it highly versatile for design-oriented industries.
Overview of Galvanizing Line
A galvanizing line is used to coat steel with a layer of zinc through a hot-dip process. The steel is immersed in molten zinc, forming a metallurgical bond that provides strong corrosion protection.
This method is widely used in structural and outdoor applications where long-term durability is more important than appearance. Galvanized steel is commonly used in infrastructure, automotive body structures, and industrial frameworks.
Key Differences in Process
Although both systems enhance metal performance, their processes are fundamentally different.
1. Coating Method
- Color coating line: Uses roller coating to apply paint layers (primer and top coat).
- Galvanizing line: Uses hot-dip immersion in molten zinc.
2. Surface Preparation
Both processes require cleaning, but the methods differ:
- Color coating lines use chemical cleaning and conversion treatment.
- Galvanizing lines require more intensive surface preparation, including pickling to remove oxides.
3. Final Surface Appearance
- Color-coated metal offers a wide range of colors, textures, and gloss levels.
- Galvanized metal has a metallic gray appearance with a spangled zinc surface.
Performance and Durability Comparison
Each system provides different types of protection depending on usage conditions.
- Color coating systems provide excellent aesthetic appeal and good corrosion resistance, especially when combined with high-quality primers.
- Galvanizing systems offer superior protection in harsh outdoor environments due to zinc’s sacrificial corrosion properties.
In environments with high humidity, industrial exposure, or coastal conditions, galvanizing is often preferred. However, where appearance and design flexibility matter, color coating is more suitable.
Industrial Applications
Both technologies are widely used across multiple industries, but their application areas differ significantly.
Color Coating Line Applications
- Roofing sheets and wall panels
- Home appliance surfaces
- Decorative building materials
- Furniture and interior panels
Galvanizing Line Applications
- Structural steel beams and columns
- Highway guardrails
- Automotive chassis parts
- Outdoor infrastructure components
Cost and Production Considerations
Cost is another key factor when comparing these two systems.
- Color coating lines generally involve higher operational complexity due to multi-layer coating and curing systems.
- Galvanizing lines require high energy input for molten zinc baths but are simpler in finishing steps.
Production speed, maintenance requirements, and material usage also vary depending on line configuration and output requirements.
Conclusion
Both color coating and galvanizing lines play essential roles in modern metal processing, but they serve different purposes. A color coating line focuses on decorative appeal and customizable finishes, while galvanizing emphasizes long-term corrosion protection through zinc coating.
Choosing between the two depends on application requirements, environmental conditions, and desired product appearance. By understanding their key differences, manufacturers can select the most efficient and cost-effective metal treatment solution for their specific industry needs.
